Zebra Z37 battery replacement
Posted: Thu May 30, 2019 1:42 pm
by bbadmin
Horizontal setup with 24 Nissan Leaf modules
- IMG_6047.JPG (122.67 KiB) Viewed 206208 times
Re: Zebra Z37 battery replacement
Posted: Thu May 30, 2019 1:43 pm
by bbadmin

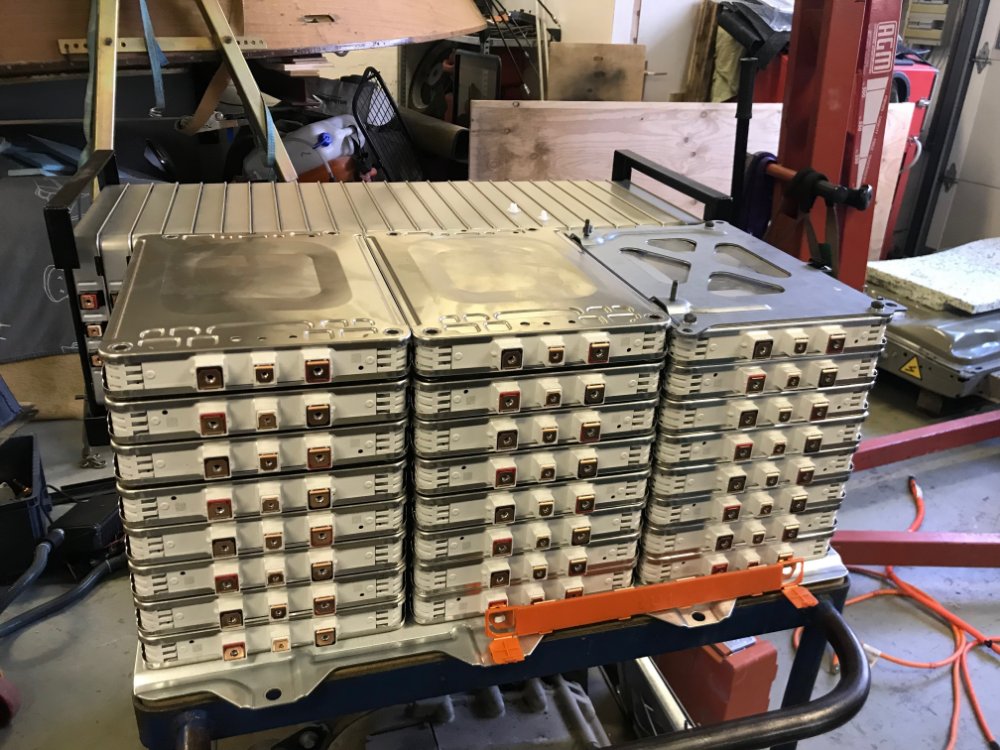

Vertical setup with 3 stacks of 8 modules each:
- IMG_6068.JPG (173.15 KiB) Viewed 206207 times
Re: Zebra Z37 battery replacement
Posted: Thu May 30, 2019 1:43 pm
by bbadmin

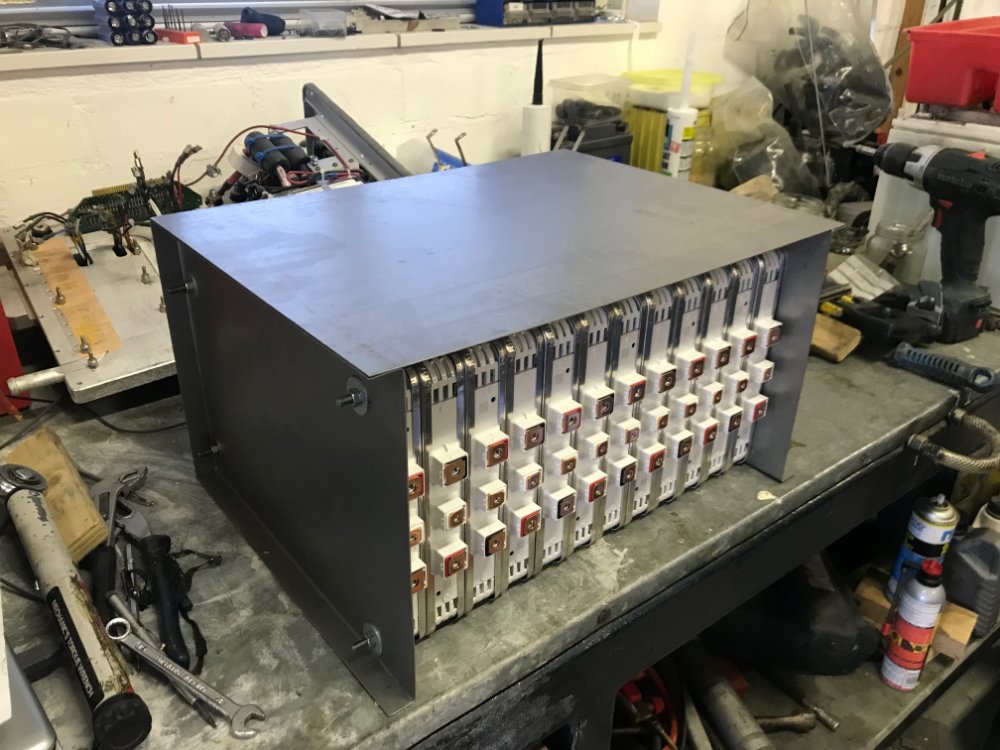

Closed metal box. each containing 12 modules with BMS:
- IMG_6131.JPG (140.11 KiB) Viewed 206207 times
